Performance : Provides excellent arc starting, arc stability and re-ignition, and is less prone to tip wear. Materials Welded: Carbon Steel Stainless Steel Nickel Alloy Titanium Aluminum Lanthanated Tungsten Electrode: Lanthanated tungsten electrode attracts close attention and becomes popular...
Performance :
Provides excellent arc starting, arc stability and re-ignition, and is less prone to tip wear.
Materials Welded:
Carbon Steel
Stainless Steel
Nickel Alloy
Titanium
Aluminum

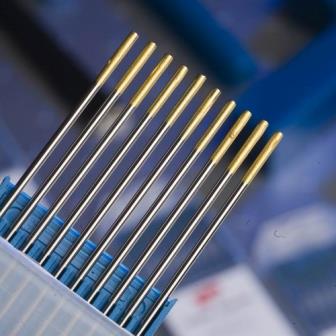

Lanthanated Tungsten Electrode:
Lanthanated tungsten electrode attracts close attention and becomes popular in international welding area for its unique welding performance; it is easy to use under AC or DC conditions; lanthanated electrodes operate at a slightly different arc voltage than thoriated or ceriated electrodes; developed around the same time as ceriated tungsten to help combat the increasing awareness of the radioactivity of thoriated tungsten; generally used to weld carbon and stainless steels, nickel alloys and titanium.
Designation | Composition | Color Mark | |||
Dioxide | Oxide Compound % | Impurities % | Tungsten % | ||
WL20 | La2O3 | 1.90-2.10 | =0.02 | Remainder | Blue |
More models available:
1) We can supply electrodes of thoriated tungsten, ceriated tungsten, lanthanated
tungsten, zirconiated tungsten pure tungsten.
2) Item: WP, WT20, WC20, WZr3, WZr8, WL10, WL15, WL20
3) Diameter: 0.5- 10.0mm
4) Length: 50.00mm, 75.00mm, 150.00mm, 175.00mm
5) Quality of surface: polish annealed, or ground annealed
6) Applications: GTAW / TIG welding and plasma welding, cutting
If you want to import lanthanated tungsten electrode wl20 2% (blue) from one of the competitive Lanthanum Tungsten Electrode manufacturers and suppliers in China, equipped with a productive factory, MAIKE is always at your service.
